® Dedicated pH/ORP Meter – HI2002 – Hanna Instruments Cambodia

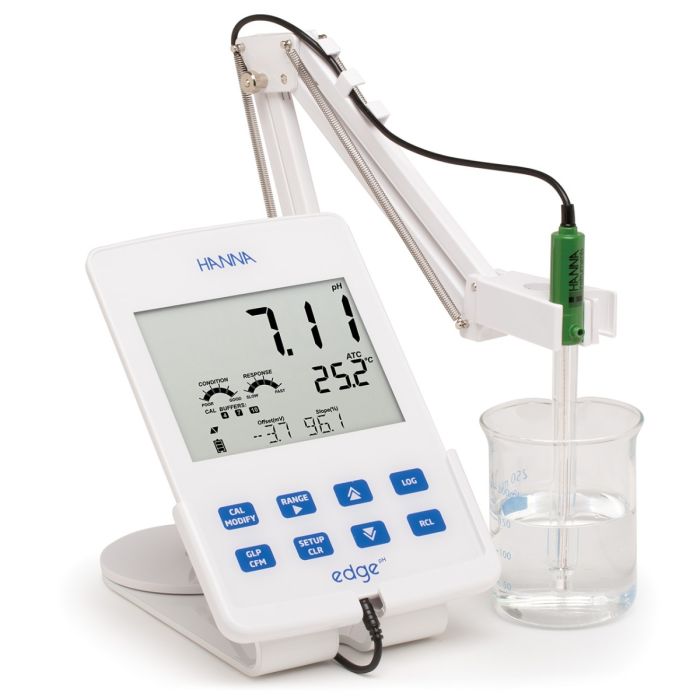

Hanna Instruments is proud to introduce the world’s most innovative pH/ORP meter: edge®.

edge’s groundbreaking design is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. edge is a single, easy to use meter that can measure pH and ORP.

Advanced pH Electrode Diagnostics

edge features advanced pH electrode diagnostics to ensure worry-free measurements. Diagnostics include Hanna’s exclusive CAL Check™ feature that alerts users to potential problems during calibration. The Sensor Check™ feature for glass and junction integrity is enabled when using optional pH electrodes with a matching pin.

Capacitive Touch

edge features a capacitive touch keypad that gives a distinctive, modern look. The keypad has a fast response and is sensitive enough to be used with laboratory gloves. Since the keypad is part of the screen, there are no buttons to get clogged with sample residue.

Large, Easy to Read LCD

edge features a 5.5” LCD display that you can clearly view from over 5 meters. The large display and it’s wide 150° viewing angle provide one of the easiest to read LCDs in the industry.

SKU	HI2002-01
Name	® Dedicated pH/ORP Meter – HI2002
pH Range	-2.000 to 16.000 pH (Standard Mode), -2.00 to 16.00 pH (Basic Mode)
pH Resolution	0.001 pH, 0.01 pH
pH Accuracy	±0.01 pH, ±0.002 pH
pH Calibration	5 points (standard mode)  1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (basic mode) 4.01; 6.86; 7.01; 9.18; 10.01
pH Temperature Compensation	ATC: -5.0 to 100.0ºC; 23.0 to 212.0°F*
pH CAL Check (electrode diagnostics)	Yes
pH Input impedence	digital pH electrode input
ORP Range	±2000.0 mV
ORP Resolution	0.1 mV
ORP Accuracy	±0.2 mV (±999.9 mV); ±1 mV (±2000 mV)
mV Range	±1000.0 pH in mV
mV Resolution	0.1 mV
mV Accuracy	±0.2 mV
Temperature Range	-20.0 to 120.0 ºC, -4.0 to 248.0 °F
Temperature Resolution	0.1 °C, 0.1 °F
Temperature Accuracy	±0.5 °C, ±0.9 °F
pH Electrode	HI11310 pH electrode (included)
Temperature Probe	integrated into pH electrode
Logging Type	log-on-demand; log-on-stability, interval logging
Logging Memory	up to 1000 records; log-on-demand (max. 200 logs); manual log-on-stability (max. 200 logs); interval logging (max. 600 samples; 100 lots)
Connectivity	1 micro USB port for charging and PC connectivity, 1 USB port for flash storage
GLP	Yes
Calibration Timeout Reminder	Yes
Autoend	Yes
Display	segmented LCD
Battery Type/Life	built-in rechargeable battery with up to 8 hours of continuous use
Power Supply	5 VDC adapter (included)
Environment	0 to 50°C (32 to 122°F), RH max 95% non-condensing
Dimensions	202 x 140 x 12.7mm (8” x 5.5” x 0.5”)
Weight	250 g (8.82 oz)

® HI2002 includes benchtop docking station with electrode holder, wall mount cradle, USB cable, HI11310 glass body refillable pH electrode with temperature sensor, 2 sachets each of pH 4, 7, 10, cleaning solution, 5 VDC power adapter and instruction manual.

® Dedicated pH/ORP Meter – HI2002
